Stable Movement High Efficiency Barbed Wire Machine Popular In World

  • Stable Movement High Efficiency Barbed Wire Machine Popular In World
Plaats van herkomst Hebei, China
Merknaam DIAOZHUO
Certificering CE ISO9001
Modelnummer DZ-CSA DZ-SCB DA-CSC
Min. bestelaantal 1set
Prijs variable
Verpakking Details woodencase en plastic zakken
Levertijd 20-30 dagen
Betalingscondities L/C, D/P, T/T, Western Union, MoneyGram
Levering vermogen 20 reeksen per maand

Contacteer me voor vrije steekproeven en coupons.

WhatsApp:0086 18588475571

wechatten: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
ingenieur overzee de dienstmachines draai dubbel
Materiaal Gegalvaniseerde Draad Draaddiameter 2.23mm
capcity 70kg/hour Motor 2.2Kw
Markeren

expanded metal sheet making machine

,

high speed expanded metal machine
Laat een bericht achter
Productomschrijving

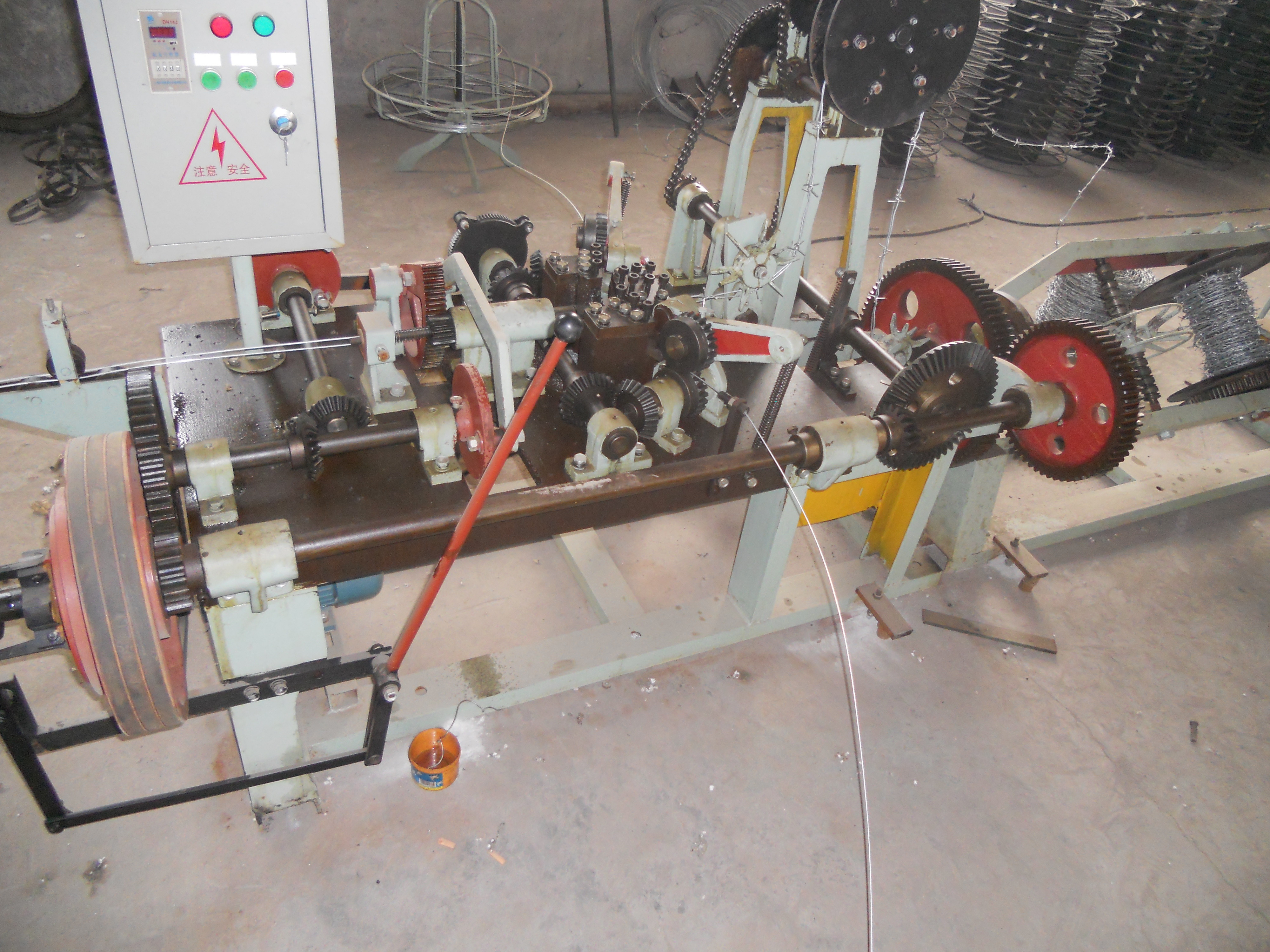

Popular In The World Stable Movement High Efficiency Low Noise Barbed Wire Machine



The specific operation method of the barbed wire machine is: turn on the power (three-phase four-wire), open the control box, close the air switch, and press the start button to start the car. First, try to produce a certain output and obtain the corresponding number of revolutions of the drive shaft. At this time, the counter is set to a maximum of 9999, and the corresponding number of revolutions per kilogram can be obtained (the number of revolutions per kilogram can be determined according to theoretical calculations). You can then set the number of counter revolutions to the set number of revolutions (ie, to determine the output) The machine can stop automatically. The barbed wire machine then presses the zero button, the counter number is displayed as zero, and then presses the start button again for the next production.



Classified by surface treatment: galvanized barbed wire, pvc plastic barbed wire, aluminum coated barbed wire. The reason for surface treatment is to strengthen the corrosion resistance. The surface treatment of galvanized barbed wire is galvanized, which can be electric galvanized and hot-dip galvanized; the use of barbed wire: for industrial, agricultural, animal husbandry, highway, forest farm protection.



Technical parameter of barbed wire making machine



Model CS-A CS-B CS-C
Motor power 2.2KW 2.2KW 2.2KW
Main drive shaft speed 402 r/min 355 r/min 355 r/min
Wire diameter 2.2-3mm 2.2-3mm 1.6-2.8mm
Barb wire diameter 1.8-2.2mm 1.8-2.2mm 1.6-2.2mm
Barbed space 76mm/ 102mm/ 127mm 102mm/ 127mm 102mm/ 127mm
Twisted number 3-5   7
Production 70 kg/h 40 kg/h 40 kg/h
Weight 1200kg 1000kg 1000kg
Dimension 1950×950×1300 3100 ×1000 ×1150mm 3100 ×1000 ×1150mm
